This document provides technical information and features of IXYS' IGBT Lightspeed series products. The series features a voltage rating of 1200V, a current rating of 70A, a saturation voltage of 4.0V, and a typical turn-on time of 115ns. It is suitable for applications such as AC motor speed control, DC servo and robot drives, DC choppers, uninterruptible power supplies (UPS), and switched-mode and resonant-mode power supplies.

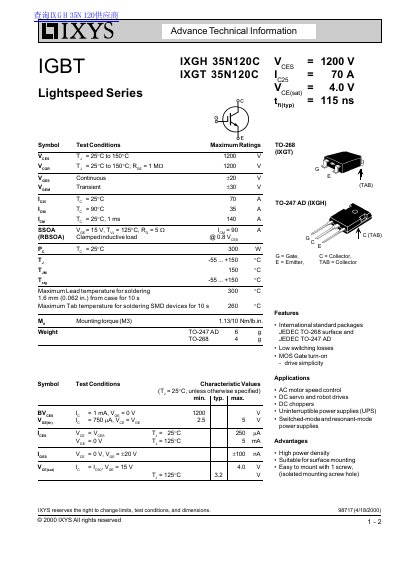

This document provides technical information for the IXYS IGBT Lightspeed Series, specifically the IXGH 35N120C and IXGT 35N120C models. It outlines the features, applications, and advantages of the device, which is designed for high power density and surface mounting. The datasheet covers maximum ratings, electrical characteristics, and switching times.
| Collector-Emitter Voltage (VCE) | 1200 V |
|---|---|
| Continuous Collector Current (IC25) | 70 A |
| Collector-Emitter Saturation Voltage (VCE(sat)) | 4.0 V |
| Thermal Resistance Junction-to-Case (RthJC) | 0.42 K/W |
| Storage Temperature Range (Tstg) | -55 ... +150 /G176C |
Applications include AC motor speed control, DC servo and robot drives, DC choppers, and uninterruptible power supplies.
The series offers high power density, suitability for surface mounting, and easy mounting with a single isolated screw.
