The IXGH and IXGT series are high-voltage and high-current MOSFETs launched by IXYS, mainly used in PFC circuits, UPS and switched power supplies.

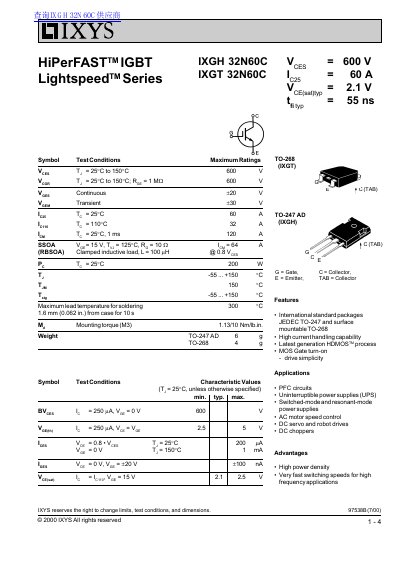

This document provides a technical overview of the IXYS IXGH32N60C and IXGT32N60C IGBT modules. It details maximum electrical ratings such as collector-emitter voltage (VCE) up to 600 V and continuous current capabilities at various temperatures. The datasheet highlights features including international standard packages (JEDEC TO-247 and surface-mountable TO-268), high power density, and very fast switching speeds enabled by the HDMOS process.
| Collector-Emitter Voltage (VCE) | 600 V |
|---|---|
| Continuous Collector Current (IC) at 25°C | 60 A |
| Continuous Collector Current (IC) at 110°C | 32 A |
| Collector-Emitter Saturation Voltage (VCE(sat)) typical | 2.5 V |
| Turn-on Delay Time (td(on)) typical | 25 ns |
| Thermal Resistance Junction-to-Case (RthJC) | 0.62 K/W |
They are suitable for PFC circuits, UPS, switched-mode power supplies, AC motor speed control, and DC servo drives.
The modules come in JEDEC TO-247 and surface-mountable TO-268 packages.
