This document introduces IXYS's HiPerFASTTM IGBT product, including its features, characteristics, and application areas.

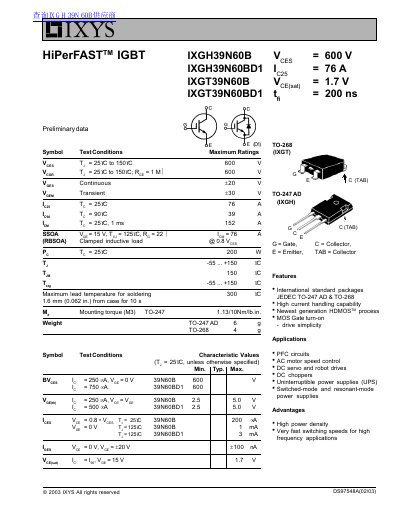

This document is a preliminary datasheet for the IXYS HiPerFAST IGBT model IXGH39N60B. It provides comprehensive technical specifications including maximum ratings, electrical characteristics, switching performance, and thermal properties for the TO-247 AD and TO-268 packages.
The datasheet covers various operating conditions and includes graphical representations of saturation voltage, temperature dependence, gate charge, and reverse recovery characteristics. It lists specific applications such as PFC circuits, AC motor speed control, and DC servo drives.
| Collector-Emitter Voltage | 600 V |
|---|---|
| Continuous Collector Current (25°C) | 7 A |
| Collector Current (90°C) | 9 A |
| Maximum Switching Frequency | 152 A |
| Package Type | TO-247 AD & TO-268 |
| Operating Temperature Range | -55 ... +150 °C |
| Mounting Torque (TO-247 AD) | 1.13 Nm |
| Thermal Resistance Junction-to-Case | 0.62 K/W |
The device is suitable for PFC circuits, AC motor speed control, DC servo and robot drives, DC choppers, and switched-mode power supplies.
The maximum junction temperature is 150 °C.
The saturation voltage is 1.7 V when the collector current is 75A and gate voltage is 15 V.
