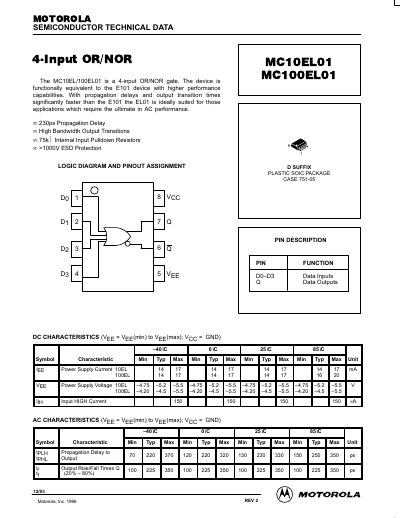

The MC10EL/100EL01 is a 4-input OR/NOR gate. The device is functionally equivalent to the E101 device with higher performance capabilities. With propagation delays and output transition times significantly faster than the E101 the EL01 is ideally suited for those applications which require the ultimate in AC performance.
The document describes the MC10EL/100EL01, a 4-input OR/NOR gate that is functionally equivalent to the E101 device but offers higher performance capabilities. Key features include propagation delays as fast as 230ps and output transition times significantly faster than previous generations.
| Propagation Delay (Typ) | 230ps |
|---|---|
| Internal Pulldown Resistors | 75kQ |
| ESD Protection | >1000V |
The maximum output rise time is 350 ps.
