The MC10/100E445 is an integrated 4-bit serial to parallel data converter. The device is designed to operate for NRZ data rates of up to 2.0Gb/s. The chip generates a divide by 4 and a divide by 8 clock for both 4-bit conversion and a two chip 8-bit conversion function. The conversion sequence was chosen to convert the first serial bit to Q0, the second to Q1 etc.

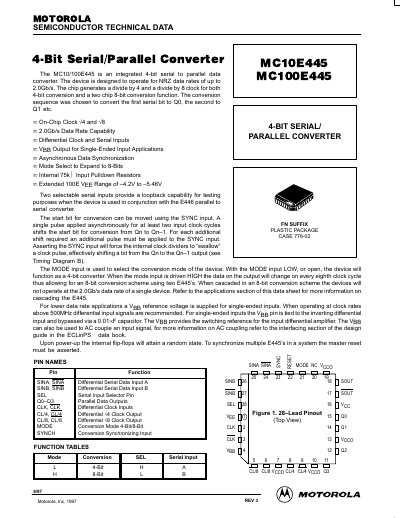

The Motorola MC10E445 and MC100E445 are integrated 4-bit serial to parallel data converters designed to operate at NRZ data rates of up to 2.0Gb/s. The devices feature on-chip clock dividers for +4 and +8 frequencies, differential clock and serial inputs, and asynchronous data synchronization capabilities.
| Operating Temperature Range | -4.2V to -5.46V |
|---|---|
| Input Pulldown Resistors | 75kΩ |
| Power Supply Current (MC10E) | 154 mA (Typ) |
The device is designed to operate for NRZ data rates of up to 2.0Gb/s.
Yes, when the MODE input is driven HIGH, the data changes on every eighth clock cycle, allowing for an 8-bit conversion scheme using two devices.
Asserting the SYNC input forces the internal clock dividers to swallow a clock pulse, effectively shifting a bit from the Qn to the Qn-1 output.
