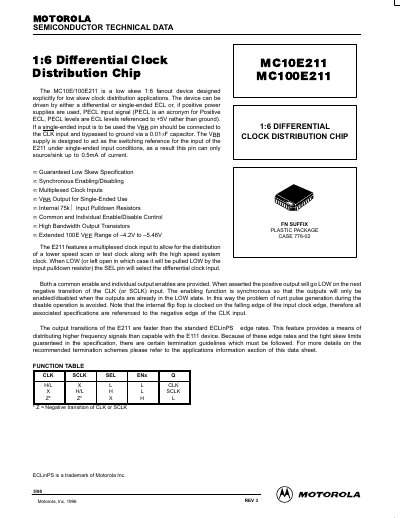

MC10E/100E211 is a low skew 1:6 fanout device designed explicitly for low skew clock distribution applications. The device can be driven by either a differential or single-ended ECL or, if positive power supplies are used, PECL input signal (PECL is an acronym for Positive ECL, PECL levels are ECL levels referenced to +5V rather than ground). If a single-ended input is to be used the VBB pin should be connected to the CLK input and bypassed to ground via a 0.01µF capacitor. The VBB supply is designed to act as the switching reference for the input of the E211 under single-ended input conditions, as a result this pin can only source/sink up to 0.5mA of current.
The Motorola MC10E211 and MC100E211 are low skew 1:6 fanout devices designed explicitly for low skew clock distribution applications. They can be driven by either a differential or single-ended ECL or PECL input signal and feature synchronous enabling/disabling and multiplexed clock inputs.
| Package Type | 28-Lead PLCC |
|---|---|
| Package Case | CASE 776-02 |
| Fanout Ratio | 1:6 |
| Part-to-Part Skew (CLK Diff) | 270 ps |
| Propagation Delay (CLK to Q Diff) | 795 ps (Typ) |
It is designed explicitly for low skew clock distribution applications.
Yes, if positive power supplies are used, it can accept PECL input signals.
The device comes in a 28-Lead PLCC package.
