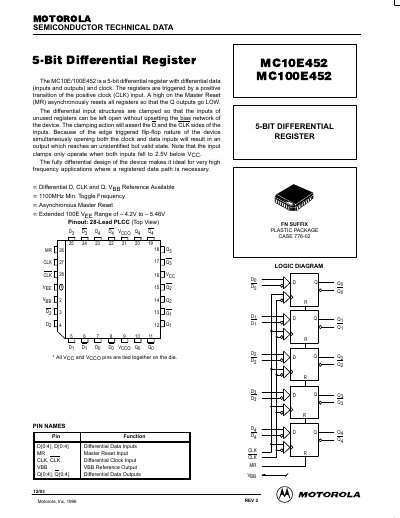

The MC10E/100E452 is a 5-bit differential register with differential data and clock. It features edge-triggered flip-flops and is suitable for high-frequency applications.
The MC10E452 and MC100E452 are 5-bit differential registers designed for very high frequency applications. These devices feature differential data inputs and outputs, as well as a differential clock, and are triggered by a positive transition of the positive clock input. An asynchronous Master Reset (MR) allows all registers to be reset so that Q outputs go LOW.
| Toggle Frequency (Min) | 1100 MHz |
|---|---|
| Package Type | 28-Lead PLCC |
| Supply Voltage Range (100E) | -4.2V to 5.46V |
| Maximum Toggle Frequency (Typ) | 1400 MHz |
| Propagation Delay to Output CLK (Diff) | 425 ps |
The minimum toggle frequency is 1100 MHz.
A high on the Master Reset (MR) asynchronously resets all registers so that the Q outputs go LOW.
