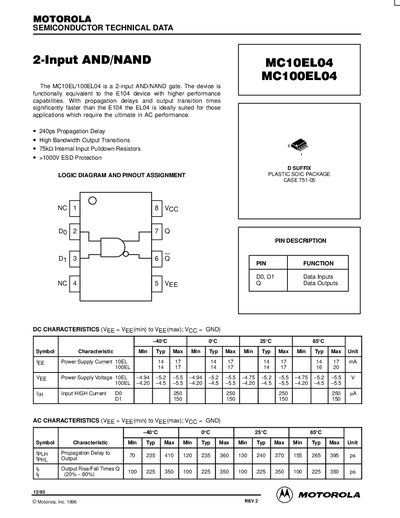

The MC10EL/100EL04 is a 2-input AND/NAND gate with higher performance capabilities. With propagation delays and output transition times significantly faster than the E104 the EL04 is ideally suited for those applications which require the ultimate in AC performance.
The MC10EL/100EL04 is a 2-input AND/NAND gate that is functionally equivalent to the E104 device but offers higher performance capabilities. It is designed for applications requiring ultimate AC performance, with propagation delays of 240ps and high bandwidth output transitions.
| Propagation Delay | 240ps |
|---|---|
| Internal Pulldown Resistors | 75kQ |
| ESD Protection | >1000V |
| Power Supply Current (Typ) | 17 mA |
| Power Supply Voltage (Min) | -5.5 V |
| Package Type | Plastic SOIC |
| Package Case Number | CASE 751-05 |
It is a 2-input AND/NAND gate.
Yes, it is functionally equivalent to the E104 device.
The typical power supply current is 17 mA.
