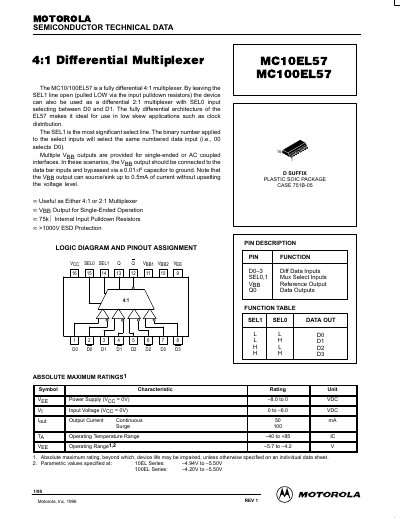

The MC10/100EL57 is a fully differential 4:1 multiplexer. The device can also be used as a differential 2:1 multiplexer. It has multiple VBB outputs for single-ended or AC coupled interfaces.
The document describes the MC10/100EL57 series as a fully differential 4:1 multiplexer designed for low skew applications such as clock distribution. The device can also function as a differential 2:1 multiplexer by leaving the SEL1 line open. It features multiple VBB outputs for single-ended or AC coupled interfaces and includes internal pulldown resistors.
| Device Type | Fully differential 4:1 multiplexer |
|---|---|
| Operating Temperature Range (10EL) | -40 to +85 °C |
| Power Supply Voltage (VEE) 10EL Series | -4.94V to -5.50V |
| Power Supply Voltage (VEE) 100EL Series | -4.20V to -5.50V |
| Output Current (Continuous) | 50 mA |
| ESD Protection | >1000V |
Yes, by leaving the SEL1 line open and pulled LOW via input pulldown resistors.
It provides multiple outputs for single-ended or AC coupled interfaces.
