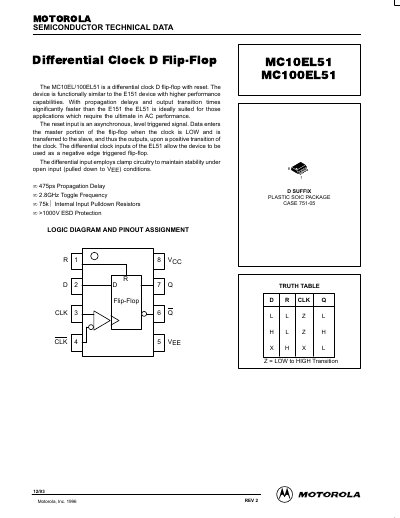

MC10EL/100EL51 is a differential clock D flip-flop with reset
The document describes the MC10EL/100EL51, a differential clock D flip-flop with reset designed for applications requiring ultimate AC performance. The device is functionally similar to the E151 but offers significantly faster propagation delays and output transition times. It includes an asynchronous, level-triggered reset input and employs clamp circuitry to maintain stability under open input conditions.
| Propagation Delay (Typical) | 475ps |
|---|---|
| Toggle Frequency (Maximum) | 2.8GHz |
| Internal Input Pulldown Resistors | 75kQ |
| ESD Protection | >1000V |
| Package Type | Plastic SOIC Package |
The device supports a maximum toggle frequency of up to 2.8 GHz.
The reset input is an asynchronous, level triggered signal that resets the outputs immediately when active.
