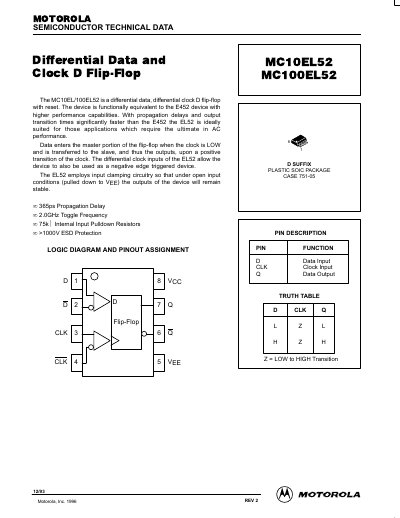

The MC10EL/100EL52 is a differential data, differential clock D flip-flop with reset. The device is functionally equivalent to the E452 device with higher performance capabilities. With propagation delays and output transition times significantly faster than the E452, the EL52 is ideally suited for those applications which require the ultimate in AC performance. Data enters the master portion of the flip-flop when the clock is LOW and is transferred to the slave, and thus the outputs, upon a positive transition of the clock. The differential clock inputs of the EL52 allow the device to also be used as a negative edge triggered device. The EL52 employs input clamping circuitry so that under open input conditions (pulled down to VEE) the outputs of the device will remain stable.
The MC10EL52 and MC100EL52 are differential data and clock D flip-flops with reset, functionally equivalent to the E452 device but offering higher performance capabilities. These devices feature significantly faster propagation delays and output transition times, making them suitable for applications requiring ultimate AC performance. They utilize differential clock inputs to allow operation as negative edge-triggered devices and include input clamping circuitry for stability under open input conditions.
| Propagation Delay | 365ps |
|---|---|
| Toggle Frequency | 2.0GHz |
| Internal Input Pulldown Resistors | 75kQ |
| ESD Protection | >1000V |
| Package Type | Plastic SOIC |
This component includes greater than 1000V of ESD protection.
