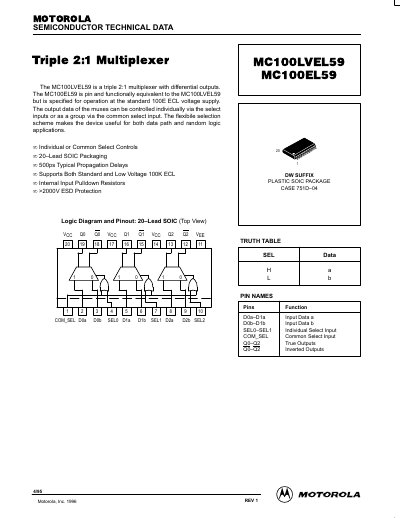

This datasheet introduces the features and characteristics of MC100LVEL59, including voltage supply, output data, and pin names.
This document provides technical data for the MC100LVEL59 and MC100EL59, which are triple 2:1 multiplexers featuring differential outputs. The MC100LVEL59 is specified for low voltage 100K ECL operation, while the MC100EL59 is specified for standard 100K ECL voltage supply. Both devices offer flexible selection schemes for data path and random logic applications.
| Package Type | 20-Lead SOIC |
|---|---|
| Propagation Delay (Typical) | 500ps |
| Power Supply Current (Typical) | 32 mA |
| Input HIGH Current (Typical) | 150 uA |
| Output Rise/Fall Times (Typical) | 540 ps |
The typical propagation delay for the device is 500ps.
The device uses a 20-Lead SOIC plastic package.
