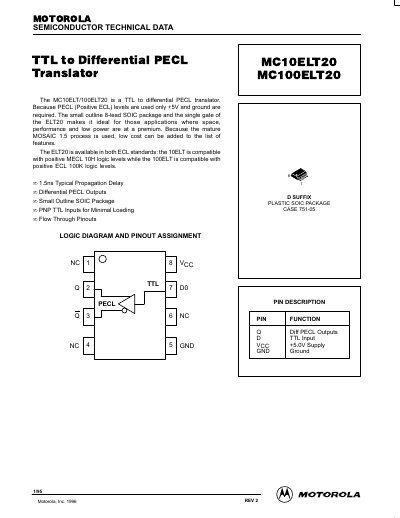

The MC10ELT/100ELT20 is a TTL to differential PECL translator. Because PECL (Positive ECL) levels are used only +5V and ground are required. The small outline 8-lead SOIC package and the single gate of the ELT20 makes it ideal for those applications where space, performance and low power are at a premium. Because the mature MOSAIC 1.5 process is used, low cost can be added to the list of features. The ELT20 is available in both ECL standards: the 10ELT is compatible with positive MECL 10H logic levels while the 100ELT is compatible with positive ECL 100K logic levels.
The Motorola MC10ELT20 and MC100ELT20 are TTL to differential PECL translators designed for applications requiring space, performance, and low power. The MC10ELT20 is compatible with positive MECL 10H logic levels, while the MC100ELT20 is compatible with positive ECL 100K logic levels. Both devices utilize the MOSAIC 1.5 process and are available in an 8-lead SOIC package.
| Typical Propagation Delay | 1.5ns |
|---|---|
| Package Type | Small Outline SOIC Package |
| Storage Temperature Range | -55 to +150 °C |
| DC Supply Voltage | 7.0 V |
The MC10ELT20 is compatible with positive MECL 10H logic levels.
The MC100ELT20 is compatible with positive ECL 100K logic levels.
The typical propagation delay is 1.5ns.
