The MC100LVEL59 is a triple 2:1 multiplexer with differential outputs. The MC100EL59 is pin and functionally equivalent to the MC100LVEL59 but is specified for operation at the standard 100E ECL voltage supply. The output data of the muxes can be controlled individually via the select inputs or as a group via the common select input. The flexibile selection scheme makes the device useful for both data path and random logic applications.

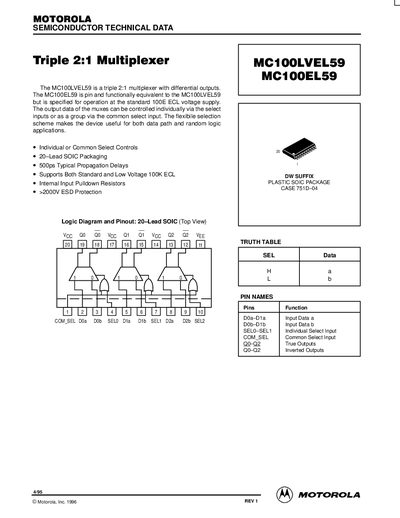

This document is a technical datasheet for the Motorola MC100LVEL59 and MC100EL59 devices. These are triple 2:1 multiplexers featuring differential outputs designed for data path and random logic applications. The MC100LVEL59 supports Low Voltage ECL (LV-ECL), while the MC100EL59 is specified for standard ECL voltage supplies but remains pin and functionally equivalent.
| Package Type | 20-Lead SOIC |
|---|---|
| Typical Propagation Delay | 500ps |
| ESD Protection | >2000V |
| Power Supply Current (Typ) | 32 mA |
| Input HIGH Current (Typ) | 150 uA |
The MC100EL59 is specified for operation at standard ECL voltage supply, whereas the MC100LVEL59 supports Low Voltage 100K ECL.
Yes, output data can be controlled individually via select inputs or as a group via the common select input.
