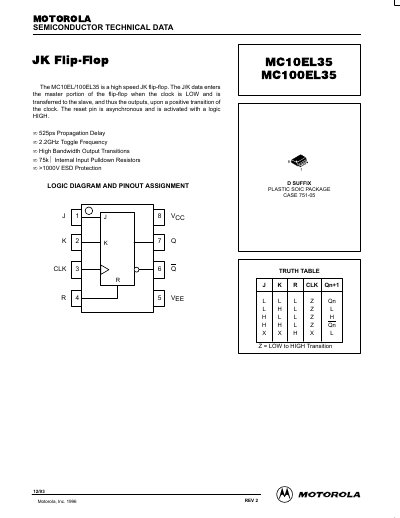

The MC10EL/100EL35 is a high speed JK flip-flop with 525ps propagation delay, 2.2GHz toggle frequency, high bandwidth output transitions, 75kΩ internal input pulldown resistors and >1000V ESD protection.
This document provides technical data for the MC10EL35 and MC100EL35 JK flip-flops. These high-speed devices feature a propagation delay of 525ps and support a toggle frequency up to 2.2GHz. The design includes asynchronous reset functionality activated by a logic HIGH signal.
| Propagation Delay (Typical) | 525ps |
|---|---|
| Toggle Frequency | 2.2GHz |
| Internal Pulldown Resistors | 75kΩ |
| ESD Protection | >1000V |
| Package Type | Plastic SOIC Package |
The reset pin is asynchronous and is activated with a logic HIGH.
Data enters when the clock signal is LOW.
