The MC100LVEL/EL90 is a triple ECL to PECL translator. The device receives either standard or low voltage differential ECL signals and translates them to either standard or low voltage differential PECL output signals. The LVEL device can handle the low voltage signals while the EL device is designed for the standard signals. It is possible to have low voltage signals on one side and standard signals on the other if the LVEL90 is used.

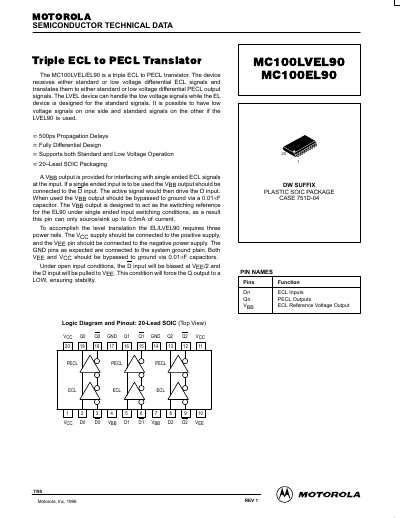

The document describes the MC100LVEL90 and MC100EL90, which are triple ECL to PECL translators. These devices receive standard or low voltage differential ECL signals and translate them to corresponding PECL output signals. The LVEL variant handles low voltage signals while the EL variant is designed for standard signals.
| Propagation Delay (Diff) | 390 ps Typ |
|---|---|
| Output HIGH Voltage (PECL, Voc=5.0V) | 3.915 V to 4.12 V |
| Output LOW Voltage (PECL, Voc=5.0V) | 3.17 V to 3.445 V |
| Package Type | 20-Lead SOIC |
It is a triple ECL to PECL translator that receives standard or low voltage differential ECL signals and translates them to either standard or low voltage differential PECL output signals.
The Voc supply should be connected to the positive supply, and the VEE pin should be connected to the negative power supply.
