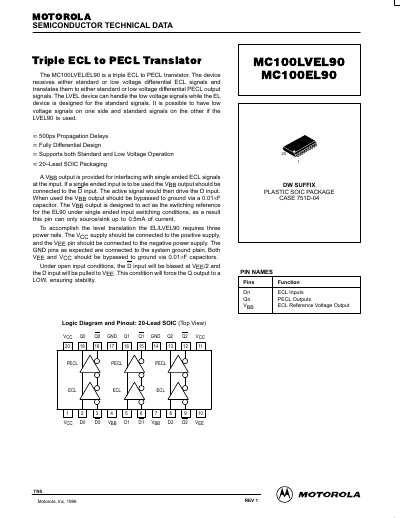

The MC100LVEL/EL90 is a triple ECL to PECL translator that receives standard or low voltage differential ECL signals and translates them to standard or low voltage differential PECL output signals.
The document describes the MC100LVEL90 and MC100EL90, which are triple ECL to PECL translators. The device receives standard or low voltage differential ECL signals and translates them to either standard or low voltage differential PECL output signals. It supports both Standard and Low Voltage Operation.
| Propagation Delay (Diff) | 390 ps Typ |
|---|---|
| Output HIGH Voltage (PECL) | 3.915 V Min |
| Package Type | 20-Lead SOIC |
It receives ECL signals and translates them to PECL output signals.
Yes, the LVEL device handles low voltage signals while the EL device is designed for standard signals.
Three power rails: Voc, VEE, and GND.
