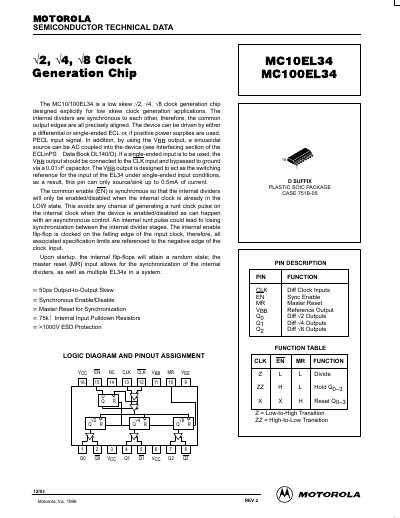

The MC10/100EL34 is a low skew ÷2, ÷4, ÷8 clock generation chip designed explicitly for low skew clock generation applications.
The document describes the MC10/100EL34, a low skew clock generation chip designed for applications requiring precise alignment of common output edges. The internal dividers are synchronous to each other, ensuring that all outputs are precisely aligned. The device can be driven by differential or single-ended ECL signals, or PECL inputs if positive power supplies are used.
| Output-to-Output Skew | 50ps |
|---|---|
| Max Toggle Frequency | 1100 MHz |
| Power Supply Current (Typical) | 39 mA |
| Package Type | Plastic SOIC Package |
It is a low skew +2, +4, +8 clock generation chip designed explicitly for low skew clock generation applications.
Yes, if positive power supplies are used, it can accept PECL input signals.
