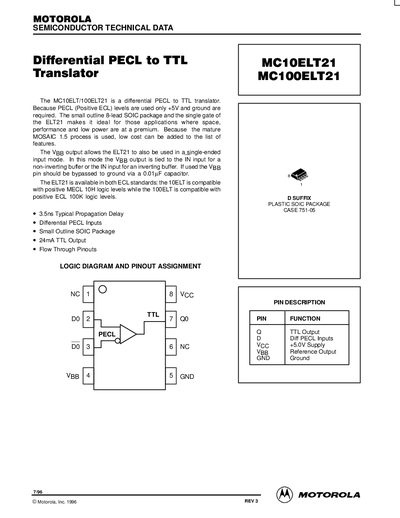

The MC10ELT21 and MC100ELT21 are differential PECL to TTL translators designed for applications requiring space, performance, and low power. The device utilizes the MOSAIC 1.5 process and is available in an 8-lead SOIC package. It supports both positive MECL 10H and positive ECL 100K logic levels.
| Typical Propagation Delay | 3.5ns |
|---|---|
| TTL Output Current | 24mA |
| Package Type | Small Outline SOIC |
| Operating Temperature Range | -40 to 85 °C |
| Storage Temperature Range | -55 to +150 °C |
| DC Supply Voltage (Max) | 7.0 V |
The MC10ELT21 is compatible with positive MECL 10H logic levels, while the MC100ELT21 is compatible with positive ECL 100K logic levels.
The VBB pin should be bypassed to ground via a 0.01uF capacitor.
