The MC10EL/100EL33 is a 1:4 divider in the MC10EL/100EL series. It features 650ps propagation delay, 4.0GHz toggle frequency, high bandwidth output transitions, 75kΩ internal input pulldown resistors, and >1000V ESD protection.

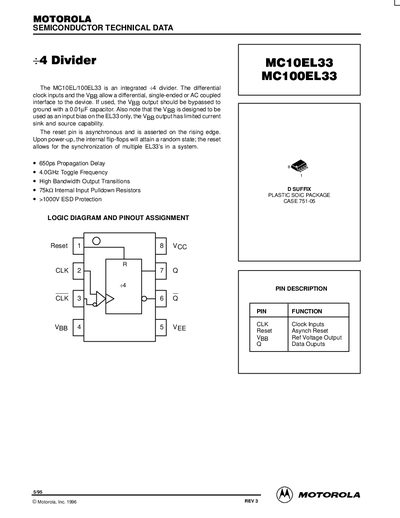

The document describes the MC10EL/100EL33 as an integrated +4 divider featuring differential clock inputs and Vpp support for differential, single-ended, or AC coupled interfaces. Key features include a 650ps propagation delay, a 4.0GHz toggle frequency capability, and high bandwidth output transitions.
| Propagation Delay (Typical) | 650ps |
|---|---|
| Toggle Frequency (Max Typ) | 4.0GHz |
The reset pin is asynchronous and is asserted on the rising edge to synchronize multiple EL33s in a system.
The device uses a PLASTIC SOIC PACKAGE, CASE 751-05.
