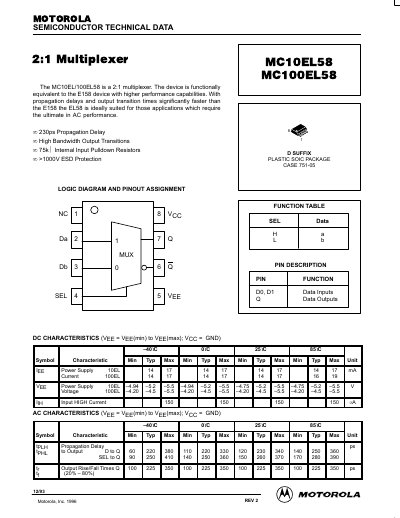

This document is a technical datasheet for the Motorola MC10EL58 and MC100EL58, which are 2:1 multiplexer devices. These components are functionally equivalent to the E158 device but offer higher performance capabilities with significantly faster propagation delays and output transition times.
| Propagation Delay (Typical) | 230ps |
|---|---|
| Internal Pulldown Resistors | 75kΩ |
The typical propagation delay from data input to output is 230 ps.
The device includes 75kQ internal input pulldown resistors.
The maximum mold protrusion allowed is 0.15 per side.
