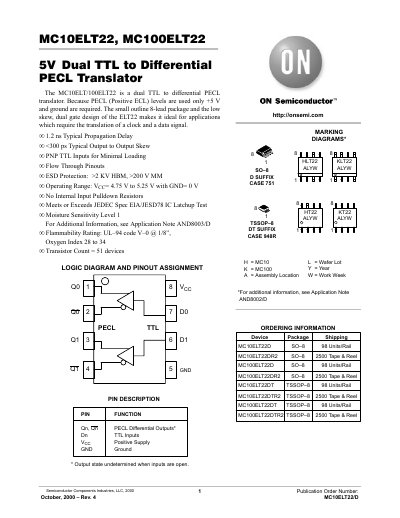

MC10ELT/100ELT22 is a dual TTL to differential PECL translator. It features low propagation delay, low output to output skew, and PNP TTL inputs, making it suitable for applications that require the translation of a clock and a data signal.
The MC10ELT22 and MC100ELT22 are dual TTL to differential PECL translators designed for applications requiring the translation of a clock and a data signal. These devices utilize PNP TTL inputs for minimal loading and feature a low skew, dual gate design. They operate with a positive supply voltage (Voc) ranging from 4.75 V to 5.25 V with ground at 0 V.
| Typical Propagation Delay | 1.2 ns |
|---|---|
| Typical Output to Output Skew | <300 ps |
| Operating Temperature Range | -40 to +85 °C |
| Maximum Input Frequency | 100 MHz |
| ESD Protection (HBM) | >2 KV |
The devices operate with a positive supply voltage (Voc) of 4.75 V to 5.25 V with GND= 0 V.
The devices operate with a positive supply voltage between 4.75 V and 5.25 V when the ground is at 0 V.
The maximum continuous output current is rated at 50 mA.
The typical propagation delay is 1.2 ns.
