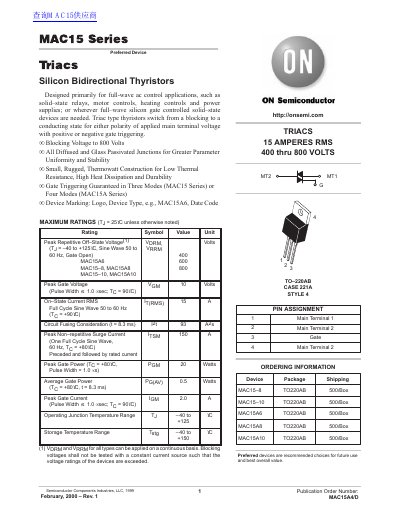

This document introduces the characteristics of MAC15A4/D silicon bidirectional thyristors.
This document provides technical specifications for the MAC15 Series of silicon bidirectional thyristors (Triacs). These devices are designed primarily for full-wave AC control applications such as solid-state relays, motor controls, heating controls, and power supplies. The series supports blocking voltages up to 800 Volts and handles an RMS current of 15 Amperes.
| RMS Current (IT(RMS)) | 15 A |
|---|---|
| Peak Repetitive Off-State Voltage | 400 to 800 Volts |
| Peak Gate Power (Pom) | 20 Watts |
| Operating Junction Temperature Range | -40 to +125 °C |
| Package Type | TO-220AB |
The devices are rated for 15 amperes RMS and blocking voltages ranging from 400 to 800 volts.
The operating junction temperature range extends up to 125 degrees Celsius.
The peak non-repetitive surge current is rated at 150 amperes.
