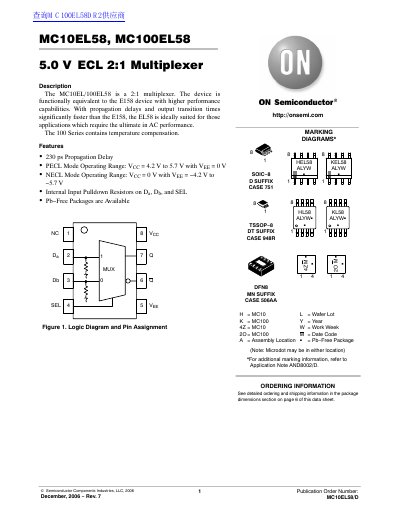

The document describes the MC10EL58 and MC100EL58, which are 2:1 multiplexers functionally equivalent to the E158 device but with higher performance capabilities. The devices offer significantly faster propagation delays and output transition times than the standard E158 model.
| Propagation Delay (Typical) | 230 ps |
|---|---|
| Maximum Toggle Frequency | 15 GHz |
| Operating Temperature Range | -40 to +85 °C |
| Output Current (Continuous) | 50 mA |
| Internal Input Pulldown Resistor | 75 kΩ |
The MC10EL/100ELS8 is functionally equivalent to the E158 device.
Yes, Pb-Free packages are available for these multiplexers.
