This document describes the MAC15S series of silicon bidirectional thyristors, designed for industrial and consumer applications for full wave control of AC loads such as appliance controls, heater controls, motor controls, and other power switching applications. The features include a sensitive gate that allows triggering by microcontrollers and other logic circuits, high immunity to dv/dt with a minimum of 25 V/μs at 110°C, high commutating di/dt with a minimum of 8.0 A/ms at 110°C, specified minimum and maximum values of IGT, VGT, and IH for ease of design, an on-state current rating of 15 Amperes RMS at 70°C, high surge current capability of 120 Amperes, blocking voltage up to 800 Volts, rugged and economical TO220AB package, and uniform gate trigger currents in three quadrants, Q1, Q2, and Q3.

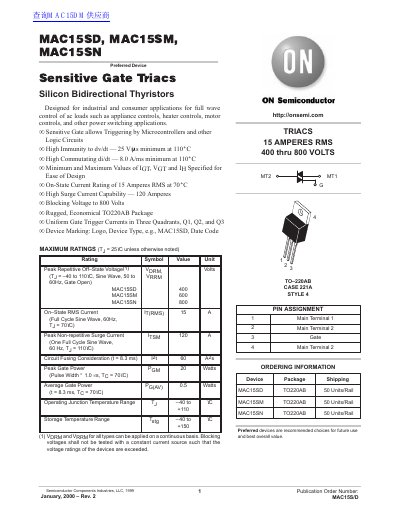

This document provides technical specifications and application information for the MAC15SD, MAC15SM, and MAC15SN series of Sensitive Gate Triacs. These silicon bidirectional thyristors are designed for full-wave control of AC loads in industrial and consumer applications, such as appliance controls, heater controls, and motor controls.
| On-State RMS Current Rating | 15 Amperes RMS at 70°C |
|---|---|
| High Surge Current Capability | 120 Amperes |
| Blocking Voltage (MAC15SN) | 800 Volts |
| Peak Repetitive Off-State Voltage (VDRM) MAC15SD | 400 Volts |
| Peak Repetitive Off-State Voltage (VRRM) MAC15SM | 600 Volts |
| Thermal Resistance Junction to Case | 2.0 °C/W |
| Package Type | TO-220AB |
The on-state current rating is 15 Amperes RMS at 70°C.
The device has a high surge current capability of 120 Amperes.
The MAC15SN model has a blocking voltage of 800 Volts.
