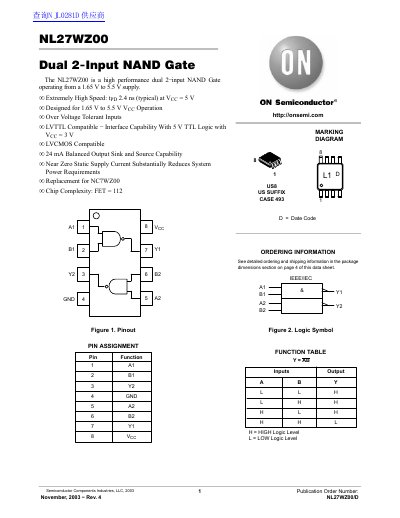

NL27WZ00 is a high-performance dual 2-input NAND Gate operating from a 1.65V to 5.5V supply. It features extremely high speed, over voltage tolerant inputs, LVTTL and LVCMOS compatibility, and a near zero static supply current.
The NL27WZ00 is a high-performance dual 2-input NAND gate designed for operation from a 1.65 V to 5.5 V supply. It features extremely high speed with a typical propagation delay of 2.4 ns at 5 V, over-voltage tolerant inputs, and LVTTL and LVCMOS compatibility. The device offers a 24 mA balanced output sink and source capability and near-zero static supply current, making it a suitable replacement for the NC7WZ00.
| Operating Supply Voltage | 1.65 V to 5.5 V |
|---|---|
| Propagation Delay (Typical) | 2.4 ns |
| Output Sink/Source Capability | 24 mA |
| Static Supply Current | Near Zero |
| Chip Complexity | 112 FETs |
The NL27WZ00 is listed as a replacement for the NC7WZ00.
Yes, it is LVTTL compatible and can interface with 5 V TTL logic with VCC = 3 V.
