MAC12SM and MAC12SN are sensitive gate triacs designed for industrial and consumer applications for full wave control of AC loads, such as appliance controls, heater controls, motor controls, and other power switching applications.

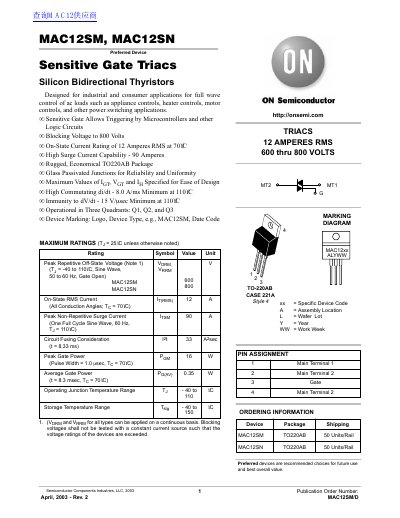

This document is a technical datasheet for the ON Semiconductor MAC12SM and MAC12SN silicon bidirectional thyristors (triacs). These preferred devices are designed for industrial and consumer applications requiring full-wave control of AC loads, such as appliance controls, heater controls, and motor controls. The triacs feature a sensitive gate allowing triggering by microcontrollers and logic circuits, with blocking voltages up to 800 Volts and an on-state current rating of 12 Amperes RMS.
| Peak Repetitive Off-State Voltage (VDRM/VRRM) | 600 / 800 V |
|---|---|
| On-State RMS Current (IT(RMS)) | 12 A |
| Operating Junction Temperature Range (TJ) | -40 to 110 °C |
| Gate Trigger Current (IGT) - Positive Gate | 2.5 mA Min / 5.0 mA Max |
They are designed for industrial and consumer applications such as appliance controls, heater controls, motor controls, and other power switching applications.
The device comes in a TO220AB package.
Yes, the sensitive gate feature allows triggering by microcontrollers and other logic circuits.
