MAC08BT1/D TRIAC 0.8 A is a product of Semiconductor Components Industries, used in solid state relays, MPU interface, TTL logic and other light industrial or consumer applications.

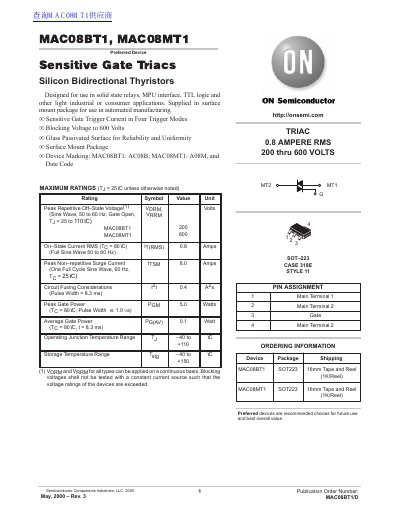

This document provides technical specifications for the MAC08BT1 and MAC08MT1 Sensitive Gate Triacs (Silicon Bidirectional Thyristors). These devices are designed for use in solid state relays, MPU interfaces, TTL logic, and other light industrial or consumer applications. They are supplied in a surface mount SOT-223 package suitable for automated manufacturing.
The datasheet details maximum ratings such as blocking voltages up to 600 Volts and RMS currents of 0.8 Amperes. It includes comprehensive electrical characteristics tables, thermal resistance values, and application-specific graphs regarding current derating and power dissipation based on PCB footprint size.
| Peak Repetitive Off-State Voltage (VDRM/VRRM) | 200 thru 600 Volts |
|---|---|
| RMS On-State Current (IAMS) | 0.8 Amps |
| Peak Non-repetitive Surge Current (tsM) | 8.0 Amps |
| Thermal Resistance, Junction to Ambient (RθJA) | 156 °C/W |
| Operating Junction Temperature Range (TJ) | -40 to +110 °C |
The devices are supplied in a surface mount SOT-223 package.
Yes, the blocking voltages range from 200 to 600 Volts depending on the specific model.
The peak repetitive off-state voltage and on-state current are rated for 0.8 Amperes RMS.
