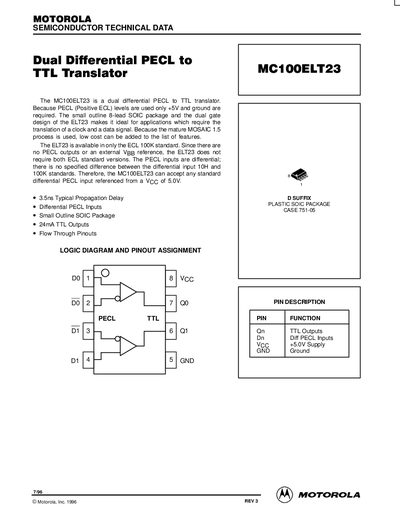

The MC100ELT23 is a dual differential PECL to TTL translator. It has 3.5ns typical propagation delay, differential PECL inputs, small outline SOIC package, 24mA TTL outputs and flow through pinouts.
The Motorola MC100ELT23 is a dual differential PECL to TTL translator designed for applications requiring the translation of a clock and a data signal. It utilizes the MOSAIC 1.5 process to offer low cost and is available in an 8-lead SOIC package. The device accepts differential PECL inputs referenced from a Vcc of 5.0V and provides TTL outputs.
| Propagation Delay (Typical) | 3.5ns |
|---|---|
| Supply Voltage (DC) | 7.0 V |
| Operating Temperature Range | -40 to 85 °C |
| Output Short Circuit Current | -150 mA |
| Package Type | Small Outline SOIC |
The typical propagation delay is 3.5ns.
The maximum DC supply voltage referenced to ground is 7.0V.
The device is available in the small outline 8-lead SOIC package.
