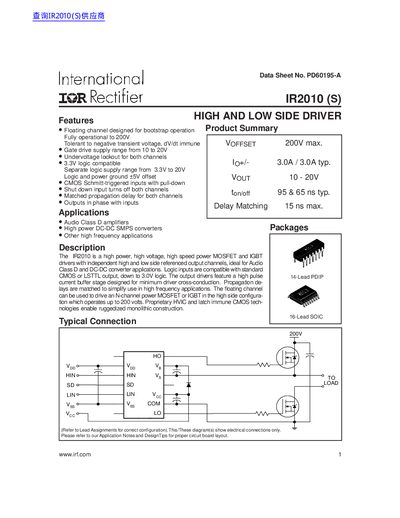

The IR2010 is a high power, high voltage, high speed power MOSFET and IGBT drivers with independent high and low side referenced output channels, ideal for Audio Class D and DC-DC converter applications.
The International Rectifier IR2010(S) is a high power, high voltage, high speed driver designed for driving power MOSFETs and IGBTs in both high side and low side configurations. It features independent output channels, a floating channel capable of operating up to 200V, and is ideal for Audio Class D amplifiers and DC-DC converter applications. The device includes undervoltage lockout for both channels and is tolerant to negative transient voltage.
| Maximum High Side Floating Supply Voltage | 225 V |
|---|---|
| Maximum High Side Floating Supply Offset Voltage | 200 V |
| Gate Drive Supply Range | 10 to 20 V |
| Logic Supply Range | 3.3V to 20V |
| Output Current (Typical) | 3.0 A |
| Turn-on Propagation Delay (Typical) | 95 ns |
| Turn-off Propagation Delay (Typical) | 65 ns |
| Delay Matching (Max) | 15 ns |
Yes, the logic inputs are compatible with standard CMOS or LSTTL outputs down to 3.0V logic.
The device can sustain a high side floating supply voltage of up to 225V.
A 14-lead DIP package has a maximum power dissipation of 1.6W under still air conditions.
