The IR2106(4)(S) is a high voltage, high speed power MOSFET and IGBT driver with independent high and low side referenced output channels. Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction. The logic input is compatible with 3.3V, 5V and 15V, providing flexibility for circuit board layout.

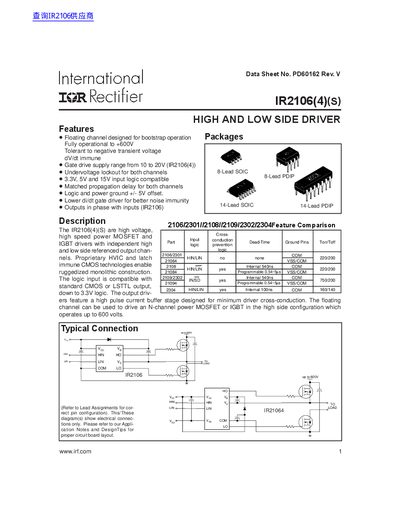

This document is a technical datasheet for the International Rectifier IR2106(4)(S) High and Low Side Driver. The device features fully operational capabilities up to +600V, tolerance to negative transient voltage, and dV/dt immunity. It includes gate drive supply ranges from 10 to 20V for the IR2106(4) variant and offers undervoltage lockout for both channels.
| High side floating absolute voltage | -0.3 to 625 V |
|---|---|
| Gate drive supply range | 10 to 20V (IR2106(4)) |
| Logic input compatibility | 3.3V, 5V and 15V |
| Turn-on propagation delay (typ) | 220 ns |
| Turn-off propagation delay (typ) | 200 ns |
The maximum high side floating absolute voltage is 625 V.
Yes, the device is tolerant to negative transient voltage.
