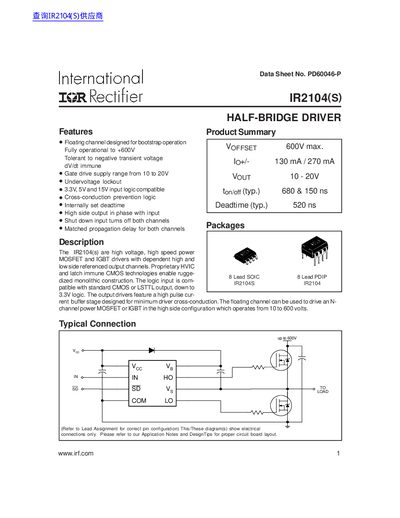

This data sheet provides information about IR2104(s), including its features, applications, pin configuration, etc.
The International Rectifier IR2104(S) is a high voltage, high speed power MOSFET and IGBT driver with dependent high and low side referenced output channels. It utilizes proprietary HVIC and latch immune CMOS technologies for ruggedized monolithic construction. The device is designed for bootstrap operation with a floating channel capable of driving N-channel power MOSFETs or IGBTs in high side configurations up to 600 volts.
| High side floating absolute voltage | 625 V |
|---|---|
| High side floating supply offset voltage | 600 V |
| Gate drive supply range | 10 to 20 V |
| Turn-on propagation delay (typ) | 680 ns |
| Turn-off propagation delay (typ) | 150 ns |
| Deadtime (typ) | 520 ns |
| Output high short circuit pulsed current | 130 mA |
| Output low short circuit pulsed current | 270 mA |
The maximum high side floating absolute voltage is 625 V.
Yes, the device is tolerant to negative transient voltage.
The typical deadtime is 520 ns.
