PD60046-S is a high voltage, high speed power MOSFET and IGBT driver produced by IR company. The maximum working voltage can reach 600V, tolerant to negative transient voltage, and has shutdown lock and low voltage lock functions, supporting 3.3V, 5V and 15V logic input.

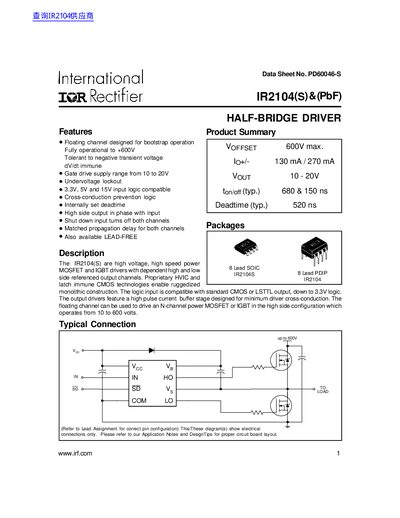

The IR2104(S) is a high voltage, high speed power MOSFET and IGBT driver featuring dependent high and low side referenced output channels. It utilizes proprietary HVIC and latch immune CMOS technologies to provide ruggedized monolithic construction suitable for bootstrap operation up to 600V.
Key features include tolerance to negative transient voltages, immunity to dV/dt, undervoltage lockout, cross-conduction prevention logic, and internally set deadtime. The device is compatible with 3.3V, 5V, and 15V input logic levels.
| Maximum High side floating absolute voltage | 625 V |
|---|---|
| High side floating supply offset voltage (Max) | 600 V |
| Gate drive supply range | 10 to 20V |
| Turn-on propagation delay (typ.) | 680 ns |
| Deadtime (typ.) | 520 ns |
The device is fully operational to +600V.
Yes, the part is also available in a lead-free version.
