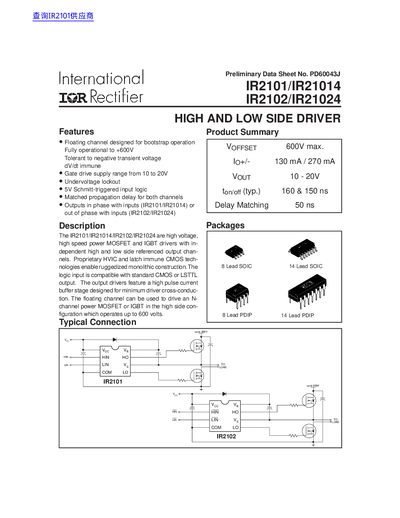

IR2101/IR21014/IR2102/IR21024 are high voltage, high speed power MOSFET and IGBT drivers with independent high and low side referenced output channels.
The IR2101/IR21014/IR2102/IR21024 are high voltage, high speed power MOSFET and IGBT drivers with independent high and low side referenced output channels. These devices utilize proprietary HVIC and latch immune CMOS technologies for ruggedized monolithic construction. The floating channel is designed for bootstrap operation and can drive N-channel power MOSFETs or IGBTs in the high side configuration up to 600 volts.
| High side floating supply voltage | -0.3 to 625 V |
|---|---|
| High side floating supply offset voltage | 600 V max |
| Gate drive supply range | 10 to 20 V |
| Turn-on propagation delay | 160 ns typ |
| Delay matching, HS & LS turn-on/off | 50 ns max |
| Output high short circuit pulsed current | 130 mA min |
| Output low short circuit pulsed current | 270 mA min |
The maximum high side floating supply offset voltage is 600V.
The gate drive supply range is from 10V to 20V.
The outputs are in phase with inputs for the IR2101/IR21014 models and out of phase for the IR2102/IR21024 models.
