The IR2010 is a high power, high voltage, high speed power MOSFET and IGBT driver with independent high and low side referenced output channels, ideal for Audio Class D and DC-DC converter applications. Logic inputs are compatible with standard CMOS or LSTTL output, down to 3.0V logic. The output drivers feature a high pulse current buffer stage designed for minimum driver cross-conduction. Propagation de- lays are matched to simplify use in high frequency applications. The floating channel can be used to drive an N-channel power MOSFET or IGBT in the high side configura- tion which operates up to 200 volts. Proprietary HVIC and latch immune CMOS tech- nologies enable ruggedized monolithic construction.

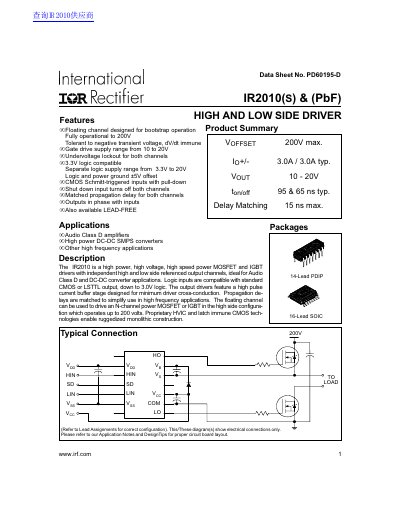

The International Rectifier IR2010(S) & (PbF) is a high power, high voltage, high speed power MOSFET and IGBT driver designed for independent high and low side referenced output channels. It is ideal for Audio Class D and DC-DC converter applications, featuring a floating channel capable of operating up to 200 volts.
| High side floating supply voltage | -0.3 to 225 V |
|---|---|
| Logic supply voltage | 3.3 to 20 V |
| Turn-on propagation delay | 50 to 135 ns |
| Turn-off propagation delay | 30 to 105 ns |
| Delay matching, HS & LS turn-on/off | 15 ns max |
| Package power dissipation (14 lead DIP) | 1.6 W |
The device is ideal for Audio Class D and DC-DC converter applications.
The maximum high side floating supply voltage is 225 V.
Yes, logic inputs are compatible with standard CMOS or LSTTL output, down to 3.0V logic.
