The WayCon cable tension sensor SX120 / SX80 / SX50 is characterized by high precision, high dynamics and high anti-interference. It can be widely used in industrial automation.

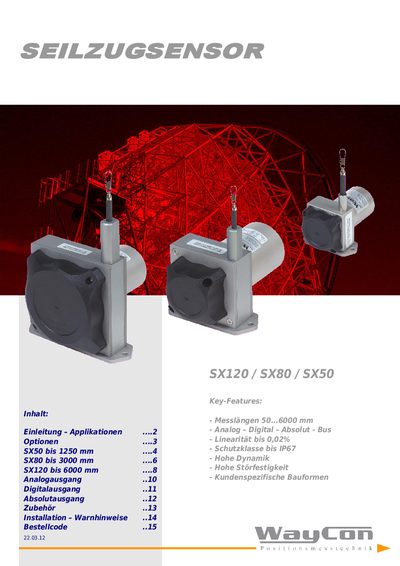

This document provides technical specifications for the Waycon SX50, SX80, and SX120 series of position measurement technology (Wegaufnehmer). These high-dynamic sensors utilize a cable pull principle with an ultralight drum to convert linear movement into rotation. They are designed for industrial applications requiring precise detection of fast movements and high accelerations. This manual is written in German.
| Sensor Principle | Cable pull principle with ultralight drum |
|---|---|
| Housing Material | Aluminum, titanium gray anodized |
| Protection Class | IP65, optional IP67 |
| Max. Stroke (SX120) | 6000 mm |
The maximum stroke for the SX50 series is 1250 mm.
Available outputs include analog (potentiometer), digital incremental, and digital absolute.
