This document introduces a high-quality eddy current displacement transducer for industrial use. The transducer can measure the distance, vibration, and rotation of metallic conducting objects contactlessly and without being affected by non-metallic media in the measurement room. It features a wide measurement range, high accuracy, high-frequency measurements, and various output options.

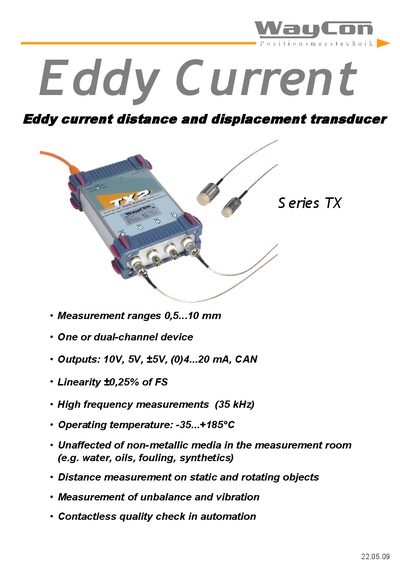

The WayCon TX series is a contactless eddy current distance and displacement transducer for industrial measurement of static or rotating metallic objects. It offers single‑ or dual‑channel configurations, high‑frequency operation (35 kHz) and a range of output options including voltage, current and CAN bus.
Technical data include measurement ranges from 0.5 mm to 10 mm, linearity of ±0.25 % of full scale, operating temperature from –35 °C to +185 °C, supply voltage 9‑36 VDC, IP67 probe protection, stainless‑steel probe body with PEEK head, PTFE‑Koax cable up to 6 m, and high‑speed output rates up to 120 kHz.
| Measurement range | 0.5 mm … 10 mm |
|---|---|
| Output signals | 10 V, 5 V, +5 V, 0‑20 mA, CAN |
| Linearity | ±0.25 % of FS |
| High‑frequency measurement | 35 kHz |
| Operating temperature (probe) | -35 °C … +185 °C |
| Supply voltage | 9 V … 36 VDC (wide input) |
| Max power consumption | 190 mA (24 V), 300 mA (12 V), 390 mA (QV) |
| Probe protection class | IP67/AP68 |
| Probe material | Stainless steel 1.4305, PEEK head |
| Cable type | PTFE‑Koax, 3 m/6 m (customizable) |
| Resolution | 10 Hz 0.007 %, 1 kHz 0.018 %, 35 kHz 0.1 % |
| Output rate | 120 kHz (1‑channel), 70 kHz (2‑channel) |
It measures distances from 0.5 mm up to 10 mm.
The transducer can output 10 V, 5 V, +5 V, 0‑20 mA and CAN bus signals.
The probe operates from –35 °C to +185 °C.
The probe is rated IP67/AP68 for water and dust protection.
