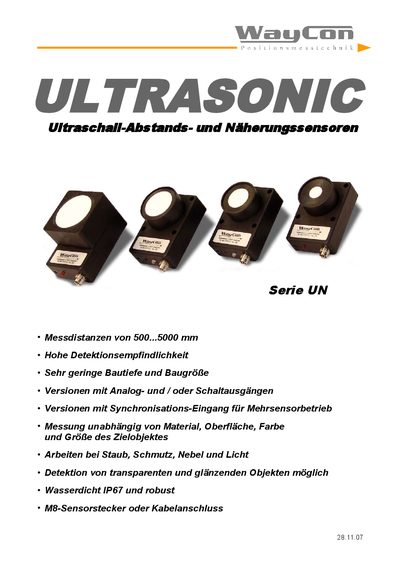

UN series ultrasonic sensors have a measurement range of 500.5000 mm, high sensitivity, small size, and multiple functions.
The UN series ultrasonic sensors provide high‑power density distance and proximity measurement in compact housings. Models UN500, UN1000, UN2500 and UN5000 cover measurement ranges from 80 mm up to 5000 mm and feature adjustable analog or switch outputs, temperature compensation and optional synchronization.
The manual includes technical data, mounting instructions, wiring diagrams, power requirements and application examples such as level monitoring, conveyor control and collision protection for agricultural and industrial vehicles. This manual is written in German.
| Measurement range | 80‑500 mm (UN500), 135‑1000 mm (UN1000), 250‑2500 mm (UN2500), 400‑5000 mm (UN5000) |
|---|---|
| Blind area (no valid analog signal) | 0‑80 mm (UN500), 0‑135 mm (UN1000), 0‑250 mm (UN2500), 0‑400 mm (UN5000) |
| Housing material | Polyamid glasfaserverstärkt |
| Connector | M8 4‑pole plug or integrated cable |
| Supply voltage (polarity‑protected) | 15‑30 VDC |
| Average current consumption (loaded) | >60 mA |
| Temperature error | <1 % FS over –20 °C … +50 °C |
| Send frequency | >180 kHz (UN500/UN1000), >120 kHz (UN2500), >80 kHz (UN5000) |
