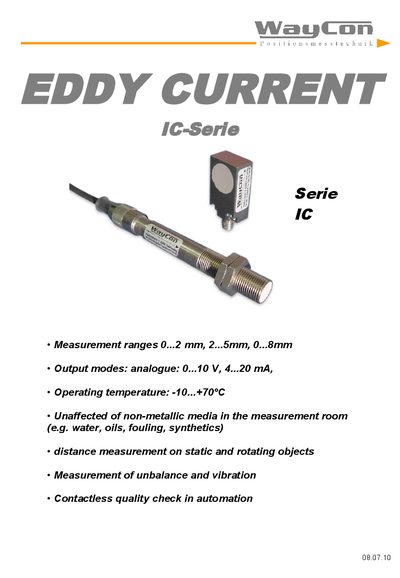

The IC-Serie series of products has a measuring range of 0.2 mm, 2.5mm, 0.8mm, the output mode is analog: 0.10 V, 4.20 mA, the operating temperature is -10.+70°C, and it is not affected by non-metallic media (such as water, oil, fouling, synthetics) in the measuring room. It can be used for distance measurement on static and rotating objects, measurement of unbalance and vibration, and contactless quality check in automation.
The WayCon IC Series eddy current sensors provide contactless measurement for static and rotating objects, suitable for imbalance, vibration, and quality‑check applications in automation. They operate without influence from non‑metallic media such as water, oils, or synthetics.
The sensors offer multiple measurement ranges (0‑2 mm, 2‑5 mm, 0‑8 mm), analogue output modes (0‑10 V, 4‑20 mA), and an operating temperature range of –10 °C to +70 °C. They are housed in steel or nickel‑plated brass, meet IP67 protection class, and include reverse‑polarity/short‑circuit protection.
| Measurement range | 0‑2 mm, 2‑5 mm, 0‑8 mm |
|---|---|
| Output mode (voltage) | 0‑10 V |
| Operating temperature | -10 °C to +70 °C |
| Protection class | IP67 |
| Supply voltage | 12‑30 Vde |
| Power consumption | 20 mA (typical) |
The sensors cover ranges of 0‑2 mm, 2‑5 mm, and 0‑8 mm.
They are rated IP67, providing protection against dust and water ingress.
They can output analogue signals of 0‑10 V or 4‑20 mA.
The sensors operate from –10 °C up to +70 °C.
