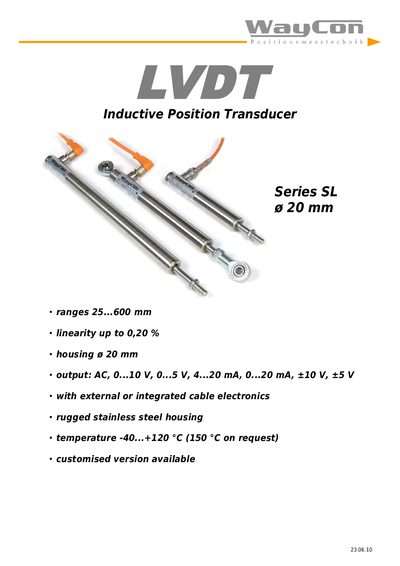

This document introduces an Inductive Position Transducer LVDT Series SL, which features a range of 25.600 mm, linearity up to 0.20%, a housing with a diameter of 20 mm, etc. The output signal has various options, including AC, 0.10 V, 0.5 V, 4.20 mA, 0.20 mA, ±10 V, and ±5 V. The sensor has a rugged stainless steel housing and is suitable for temperature -40 to +120°C (150°C on request). Customized versions are also available.
The WayCon SL series is an inductive position transducer (LVDT) designed for rugged industrial applications. It offers measurement ranges from 25 mm up to 600 mm, high linearity and a stainless‑steel housing with a 20 mm clamp diameter.
The device provides multiple output options (AC, voltage, current) and can be equipped with external or integrated cable electronics. Standard cable length is 2 m, with optional longer cables and PTFE‑type cables for high‑temperature use. Installation guidelines, zero‑point and gain adjustment procedures, and external electronics mounting details are included.
| Measurement range | 25…600 mm |
|---|---|
| Linearity | up to 0.20 % |
| Housing diameter | 20 mm |
| Output signals | AC, 0…10 V, 0…5 V, 4…20 mA, 0…20 mA, +10 V, +5 V |
| Operating temperature | -40…+120 °C (150 °C on request) |
| Protection class | IP67 (optional IP68) |
| Standard cable length | 2 m |
| Supply voltage | 3 V |
| Current consumption | 75 mA at 24 VDC |
| Maximum frequency | 2…10 kHz |
| Isolation voltage | > 1000 VDC |
The standard cable length is 2 m.
Swap clamps 6 and 8 (secondary coil) on the external electronics.
The cable length should not exceed 100 m when using a twin‑twisted pair cable.
