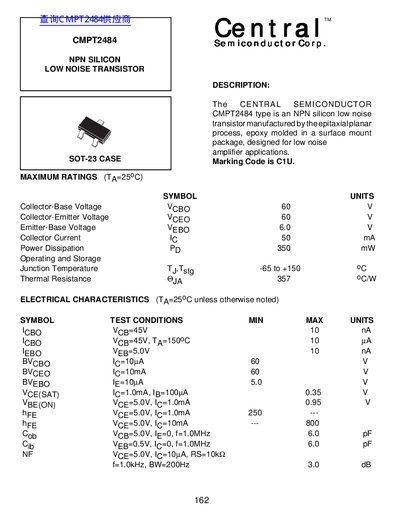

The CMPT2484 is an NPN silicon low noise transistor manufactured by Central Semiconductor. It is designed for low noise amplifier applications and is packaged in the SOT-23.
The Central Semiconductor CMPT2484 is an NPN silicon low noise transistor manufactured using the epitaxial planar process. It is epoxy molded in a surface mount SOT-23 case and is specifically designed for low noise amplifier applications. The marking code for this device is C1U.
| Collector-Base Voltage | 60 V |
|---|---|
| Collector-Emitter Voltage | 60 V |
| Emitter-Base Voltage | 6.0 V |
| Collector Current | 50 mA |
| Power Dissipation | 350 mw |
| Operating and Storage Junction Temperature | -65 to +150 °C |
| Thermal Resistance | 357 oC/W |
| Noise Figure | 3.0 dB |
It is designed for low noise amplifier applications.
The maximum collector current is 50 mA and the power dissipation is 350 mW.
The minimum noise figure is 3.0 dB when VCE=5.0V, IC=10uA, RS=10kΩ, f=1.0kHz, and BW=200Hz.
