CMPSH1-4 is a high current Schottky diode produced by Central Semiconductor. It is packaged in SOT-23F and is suitable for high current applications in mobile communications and DC-DC converters.

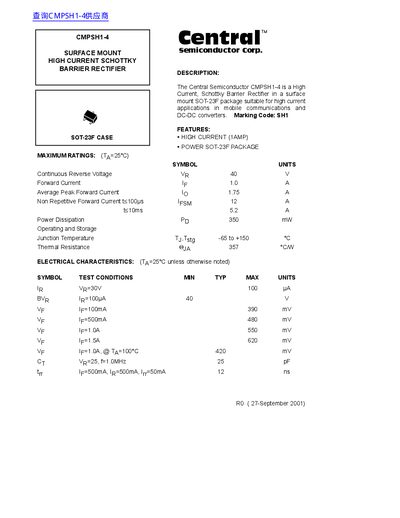

The Central Semiconductor CMPSH1-4 is a high current Schottky barrier rectifier designed for high current applications in mobile communications and DC-DC converters. It is housed in a surface mount SOT-23F package with a marking code of SH1.
| Continuous Reverse Voltage | 40 V |
|---|---|
| Forward Current | 1.0 A |
| Average Peak Forward Current | 1.75 A |
| Power Dissipation | 350 mW |
| Operating and Storage Junction Temperature | -65 to +150 °C |
| Thermal Resistance | 357 °C/W |
| Package Type | SOT-23F |
The marking code for the device is SH1.
It is suitable for high current applications in mobile communications and DC-DC converters.
