The document describes the features and characteristics of the CENTRAL SEMICONDUCTOR CMPT2222A NPN silicon transistor. The transistor is manufactured using epitaxial planar process, epoxy molded in a surface mount package, and is designed for small signal general purpose and switching applications.

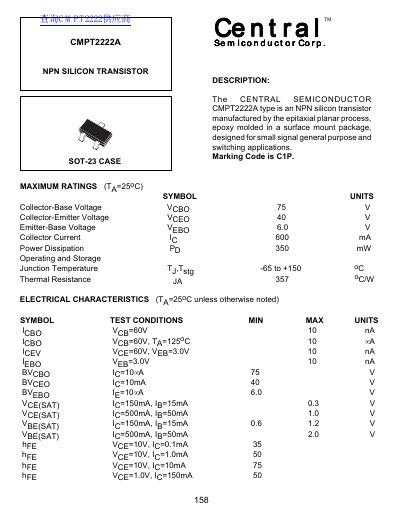

This document is a technical datasheet for the Central Semiconductor Corp. CMPT2222A, an NPN silicon transistor manufactured using the epitaxial planar process. The device is housed in an epoxy molded SOT-23 surface mount package and is designed for small signal general purpose and switching applications.
| Package Type | SOT-23 CASE |
|---|---|
| Operating and Storage Junction Temperature Range | -65 to +150 °C |
The operating and storage junction temperature ranges from -65 to +150 °C.
