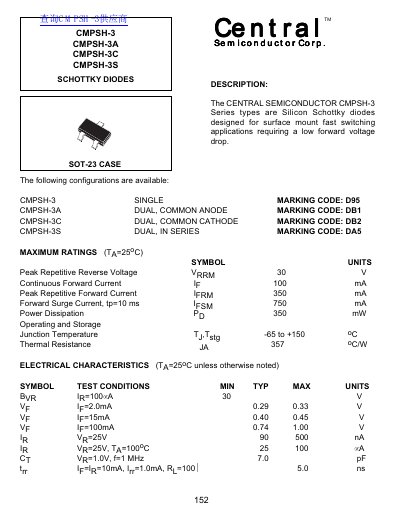

This datasheet lists all the specifications of the CMPSH-3 series, including maximum ratings, electrical characteristics, and package dimensions.
The Central Semiconductor CMPSH-3 Series consists of Silicon Schottky diodes designed for surface mount fast switching applications requiring a low forward voltage drop. The series includes four configurations: CMPSH-3 (Single), CMPSH-3A (Dual, Common Anode), CMPSH-3C (Dual, Common Cathode), and CMPSH-3S (Dual, In Series).
Maximum ratings for the device include a peak repetitive reverse voltage of 30 V, a continuous forward current of 100 mA, and a power dissipation of 350 mW at 25°C. The operating and storage junction temperature range is -65 to +150°C.
| Peak Repetitive Reverse Voltage | 30 V |
|---|---|
| Continuous Forward Current | 100 mA |
| Power Dissipation | 350 mW |
| Operating and Storage Junction Temperature | -65 to +150 oC |
| Forward Voltage (IF=100mA) | 0.74 V (Min) |
The maximum peak repetitive reverse voltage is 30 V.
The operating and storage junction temperature ranges from -65 to +150 oC.
The typical forward voltage drop is 0.33 V when the current is 2.0 mA.
