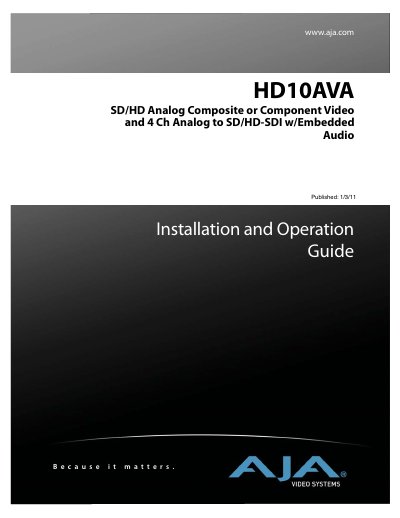

AJA HD10AVA Installation and Operation Guide

HD10AVA is a converter for SD/HD analog composite or component video and 4-channel analog to SD/HD-SDI with embedded audio.

Brand: AJA
Category: Other Electronics
Document type: User Manual
Language: English
Pages: 8
File format: PDF
File size: 398 KB
Published: 09 July, 2012
Updated: 28 September, 2023
Model: HD10A
MD5 checksum: 020CCAE51053657D9CB24A3D68FC21A5
PDF: AJA HD10AVA Installation and Operation Guide PDF

About this manual

The AJA HD10AVA is a miniature high-quality audio/video converter that automatically detects input formats and embeds four-channel balanced analog audio into SDI or HD-SDI outputs. It supports both standard definition (composite, component, S-Video) and high-definition (YPbPr component) video inputs.

What's inside

Introduction
Features
Block Diagram
I/O Connections
User Controls
DIP Switch Settings
Input Level Selection Matrix
Installation

Specifications

Video Inputs (HD)	YPbPr, SMPTE-274, 3 BNC
Video Inputs (SD)	Component/Composite/YC/S-Video, 3 BNC
Audio Inputs	4 Channel Balanced, 4 XLR
Video A/D Resolution	12 bits
Audio A/D Resolution	24 Bits, 48Khz
Power Supply	5-18VDC, 5 watts

Frequently asked questions

Does the HD10AVA require manual configuration for video formats?

No, the device automatically detects the video input format and embeds audio inputs.

How many analog audio channels does the device support?

It supports four channel balanced analog audio inputs connected via a D-connector.

What power supply is recommended?

AJA recommends using their own power supply model DWP.
