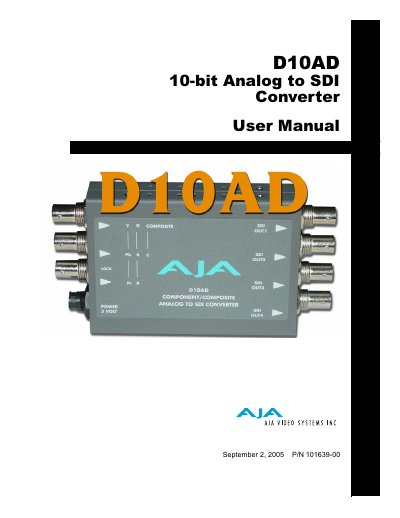

This manual introduces the AJA D10AD 10-bit Analog to SDI Converter’s features and usage.
The D10AD is a converter that provides excellent quality 10-bit conversion of component or composite analog video to SDI with EDH. It accepts YPbPr, Betacam, or RGB component inputs, as well as NTSC/PAL or YC composite inputs. The device features a 4-Line Adaptive Comb Filter for high-quality decoding of composite sources and includes a Color Bar Generator.
| A/D Converters | 10 bits, 2X oversampling |
|---|---|
| Serial Outputs | SDI (SMPTE 259M) w/EDH |
| Frequency Response Y | +/-0.15db to 5.5 Mhz |
| Frequency Response C | +/-0.15db to 2.5 Mhz |
| Power | 5v DC regulated, 4 watt |
| Size | 147 x 79 x 25 mm |
The D10AD accepts YPbPr, Betacam, or RGB component inputs and NTSC/PAL or YC (S-Video) composite inputs.
Yes, operation is not recommended from VTRs or laser disks without Time Base Correction (TBC).
Configuration is done via an 8-switch DIP accessible through a cut-out in the bottom of the unit.
