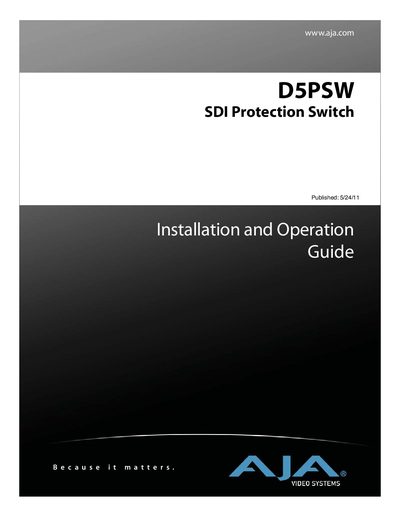

This is an installation and operation guide for the AJA D5PSW SDI Protection Switch, which introduces the features and characteristics of the product
The AJA D5PSW is an SDI Protection Switch designed to accept two SDI inputs and automatically switch to the secondary input if the primary input is invalid or absent. It features three SDI outputs, multi-color LED status indicators, and requires no configuration via dip switches. The device includes cable equalization up to 300 meters and can function as a repeater or digital audio/video converter.
| Inputs | 2 SDI (SMPTE 259M), 2xBNC |
|---|---|
| Outputs | 3 SDI (SMPTE 259M), 3x BNC |
| Power | +5V DC regulated power, 4 Watts |
| Size | 5.1" x 1.8"x 1" (131 x 44 x 25 mm) |
| Formats | 143, 177, 270, 360 Mb SMPTE 259, auto select |
Green indicates both Primary and Secondary inputs are present; flashing green means Primary is present but Secondary is not; Orange means Secondary is present but Primary is not.
The device automatically switches to the Secondary input if the Primary input is not present or is not a valid SDI signal.
