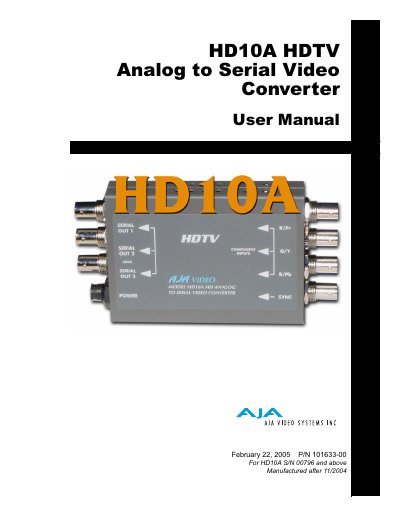

This is the user manual of an HDTV analog to serial video converter
The AJA HD10A is a miniature, high-quality 10-bit analog to digital converter designed for HDTV. It acts as a companion to the HD10C2 D/A converter, adding an HD-SDI output to cameras, VTRs, or other analog-only high definition equipment. The device accepts RGB or YPbPr analog HD inputs and outputs three duplicate HD-SDI signals.
| Resolution | 10-bit |
|---|---|
| Component Inputs | YPbPr, RGB (SMPTE-274), 3 BNCs |
| HD Serial Outputs | HD-SDI, SMPTE-292/296, 3 BNCs |
| Frequency Response | +/- .5dB to 30MHz (Y), +/- .25dB to 15MHz (C) |
| Power | 5v DC regulated, 4.5 watt |
| Size | 5.8" x 3.1" x 1" (147 x 79 x 25mm) |
The device supports 1080i, 1080p sf, 1035i, and 720p output formats.
Use DIP switch 1 to select YPbPr or RGB Component Video from the 3 input BNCs.
AJA Video warrants the product to be free from defects in materials and workmanship for a period of five years from the date of purchase.
