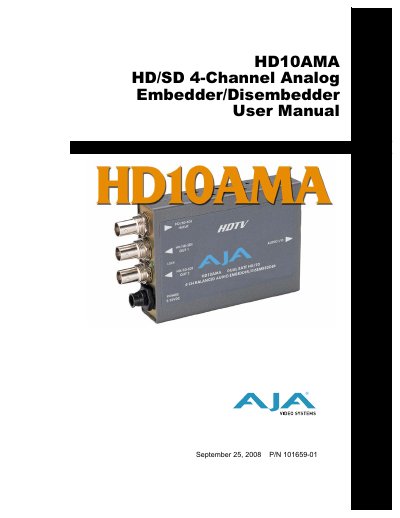

AJA HD10AMA HD/SD 4-Channel Analog Embedder/Disembedder User Manual
The AJA HD10AMA is a dual rate 4 channel analog audio Embedder/Disembedder designed for HD-SDI/SDI applications. It features automatic detection and configuration to the input video standard, allowing users to select whether to pass input audio or embed audio from a breakout cable on a channel pair basis. The device includes 4 channel balanced analog audio I/O and a supplied XLR breakout cable. This manual is written in Chinese.
Read onlineAJA HD10A specifications
| Formats | HD SMPTE 292/296M, SD SMPTE 259M |
|---|---|
| Video Input | HD-SDI or SDI BNC |
| Video Outputs | HD-SDI or SDI, 2x BNC |
| Audio Inputs | 4 x Balanced Analog Audio, XLR |
| Audio Outputs | 4 x Balanced Analog Audio, XLR |
| Power | 5-18V, 5 watts |
| Size | 5.8" x 3.1" x 1 (147 x 79 x 25mm) |
Source: AJA HD10AMA HD/SD 4-Channel Analog Embedder/Disembedder User Manual
All AJA HD10A documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the function of the AUX jumper?
The AUX jumper is used to delete all incoming ancillary data packets in both the horizontal and vertical ancillary data spaces.
From: AJA HD10AMA HD/SD 4-Channel Analog Embedder/Disembedder User Manual
What is the video processing delay in HD mode?
The video processing delay in HD mode is 7 μS.
From: AJA HD10AMA HD/SD 4-Channel Analog Embedder/Disembedder User Manual
What is the function of Switch 8 (AUX)?
Switch 8 controls whether ancillary horizontal data is passed or deleted from the input, used in conjunction with switches 1 through 4.
From: AJA HD10AM User Manual
Does the HD10AM support sample rate conversion?
Yes, with the SRC dipswitch setting ON, AES inputs are converted to a 48KHz rate synchronous to the video input.
From: AJA HD10AM User Manual
What video formats does the HD10A support?
The device supports 1080i, 1080p sf, 1035i, and 720p output formats.
From: AJA HD10A HDTV Analog to Serial Video Converter User Manual
How do I select the input format?
Use DIP switch 1 to select YPbPr or RGB Component Video from the 3 input BNCs.
From: AJA HD10A HDTV Analog to Serial Video Converter User Manual
