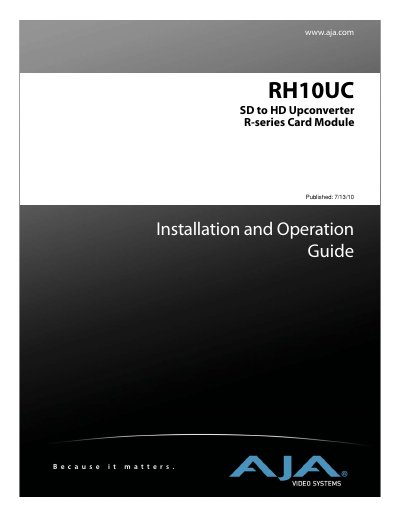

AJA RH10UC SD to HD Upconverter R-series Card Module Installation and Operation Guide

About this manual

The document serves as an installation and operation guide for the AJA RH10UC SD to HD Upconverter R-series Card Module. It outlines the physical installation process into FR1 or FR2 frames, including safety warnings regarding power disconnection and handling of heavy components like the front fan door.

The manual details the user interface consisting of two toggle switches (Parameter Select and Parameter Adjust) and a 4-character alphanumeric display. It explains how to navigate status and adjust modes to configure parameters such as operating mode (Upconvert or HD Framesync), output format, upconversion settings, and timing references.

What's inside

• Features
• Installation
• User Controls
• Editing and Viewing Board Settings
• Selecting Parameters
• Changing Operating Modes

Specifications

Frequently asked questions

What is the maximum power consumption of the RH10UC?

The unit consumes 7 Watts of power.

What voltage range is required for the power cord?

The power cord must be connected to mains power between 90 and 260 VAC.

How long does the display stay in adjust mode before returning to status mode?

The display reverts to status mode after 5 seconds of inactivity in adjust mode.
